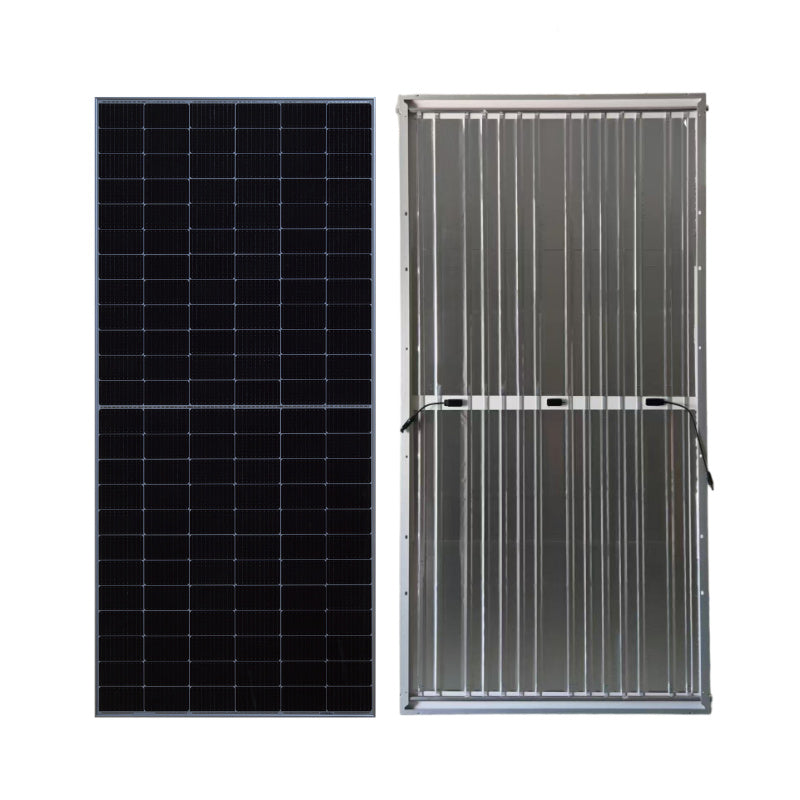

500W Single-glass PV/T modules
550W single-glass module, maximum power supply voltage 41.96V, maximum rated current 13.11A, weight 32kg, conversion efficiency 21.3%

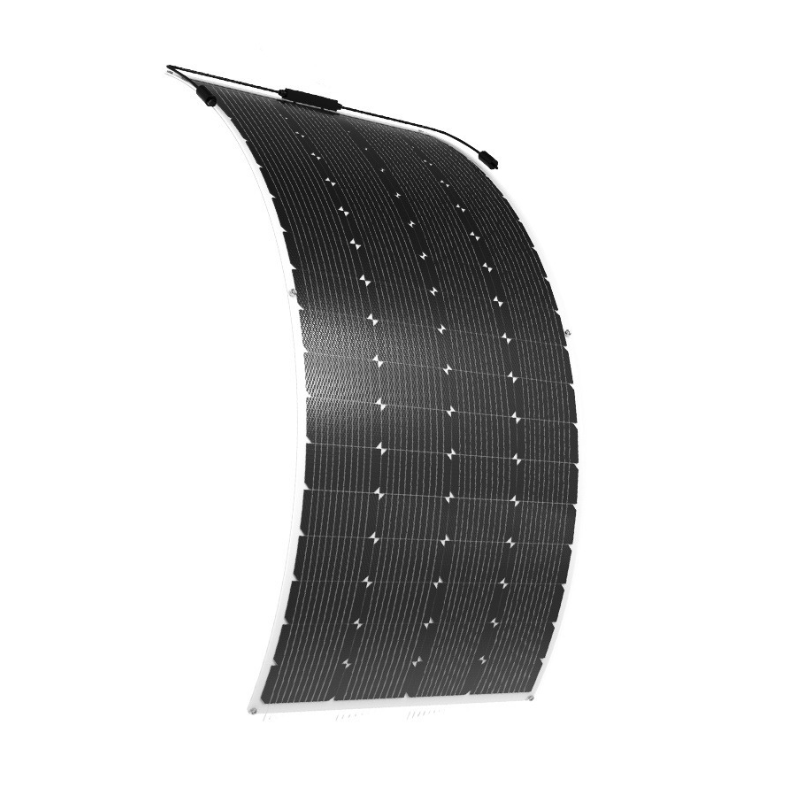

200W Flexible PV/T components
200W flexible component, maximum power supply voltage 16.21V, maximum rated current 12.35A, weight 2.6kg, conversion efficiency 22.65%

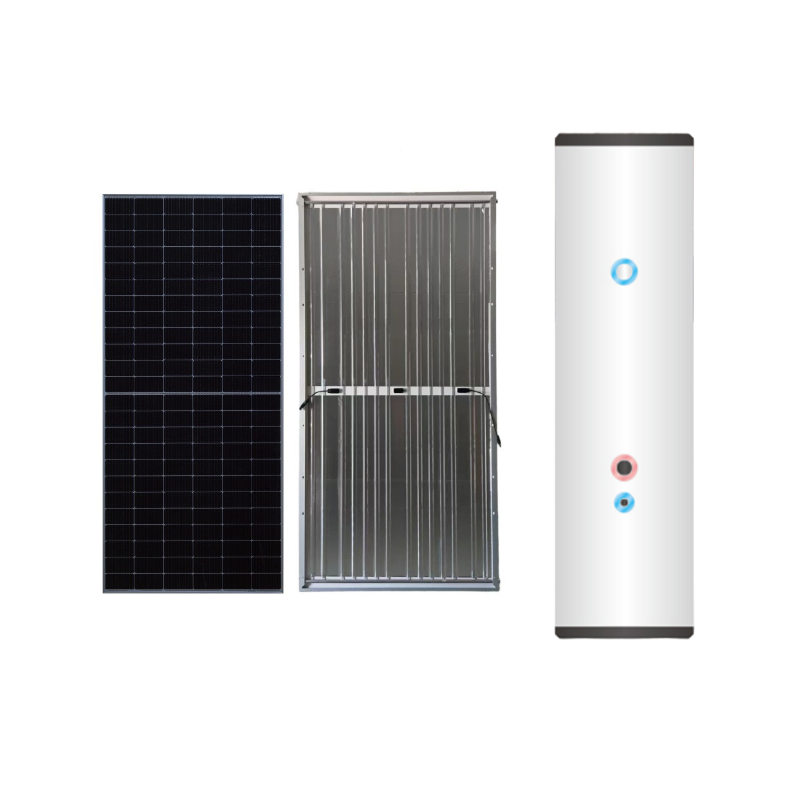

Balcony PV/T hot water system
It consists of a 550W single-glass PVT module, an 800W micro-inverter, a 100L balcony pressure water tank, a set of hydraulic modules plus mounting brackets and construction auxiliary materials. The module has a thermal power of 1100W, a maximum heating temperature of 50 degrees Celsius, and a daily hot water supply of 125L.

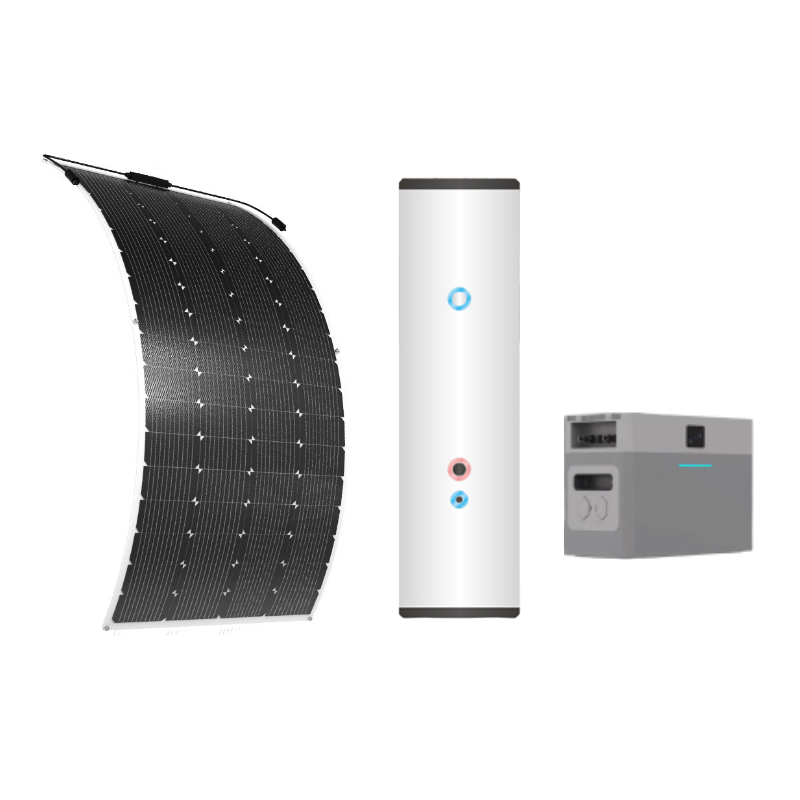

Balcony PV/T energy storage hot water system
It consists of four 220W flexible PVT panels, an 800W/2kWh micro-storage inverter, a 100L balcony pressure water tank, a set of hydraulic modules plus mounting brackets and construction auxiliary materials. The panel has a thermal power of 400W, a maximum heating temperature of 50 degrees Celsius, and a daily hot water supply of 125L.
